Linear Representations

Dr. Matthieu R Bloch

Wednesday, August 25, 2021


  • Enrollment update: 177 in person + 29 online (2nd biggest course in ECE!)
    • Might still be a few seats left to grab!
  • Sign up for piazza! (124 enrolled @ 10am) Piazza
  • Lecture resources
    • My slides + your notes + my notes
    • Prof. Romberg’s notes:
    • Recommended textbook: Marc Peter Deisenroth et al., Mathematics for Machine Learning, Cambridge University Press, (2019)
  • Self assessment posted!
    • Due Monday August 30, 2021 (+48 hour grace period if forfeiting bonus)
    • Open everything, collaboration widely encouraged, ask questions on Piazza
    • Upload on Gradescope
  • Graduate teaching assistants + office hours
    • Information to be posted on Canvas

Today’s class

  • Objective 1: ease into vector spaces of functions

    • Why it matters to ML
    • Why you might have seen it already in some form
    • Why we’ll need linear algebra!
  • Objective 2: write a few proofs together

    • How to write clean proofs

Representation and approximation in ML

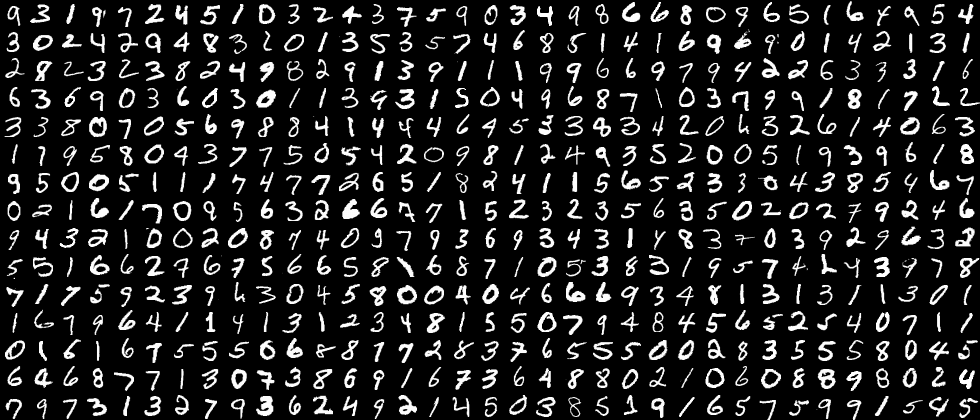

MNIST dataset
  • Regression and classification in machine learning
    • Many problems reduce to fitting a function \(f:\bbR^d\to\bbR\) to a data \(\set{(\bfx_i,y_i)}_{i=1}^n\)
    • \(f\) is the unknown quantity, and we want \(f(\bfx_i)\approx y_i\) so that we can predict \(f(\bfx)\) for every \(\bfx\in\bbR^d\)
  • Classification: predict a label - Regression: predict a real number

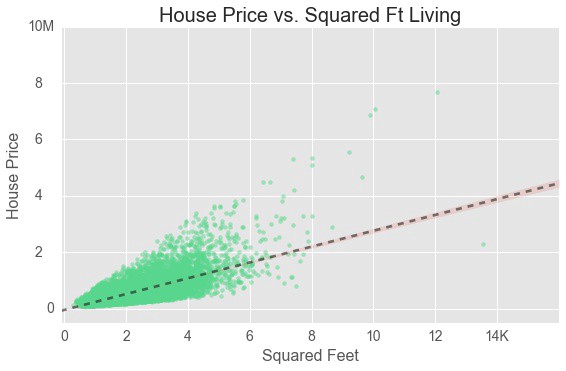

Housing price vs. square footage
  • Fundamental question: how do we represent a function in a computer?

    • A computer only stores a sequence of (quantized) real values
    • What does it mean to “store”a function, say \(f(x)=\sin x\)
  • Solution: use a basis expansion \(f(\bfx)\approx\sum_{i=1}^m\alpha_i h_i(\bfx)\)

    • \(\set{h_i}_{i=1}^m\) are called basis functions (how do we choose them?)
    • The approximation is called a linear basis expansion
    • Representing \(f\) amounts to finding \(\set{\alpha_i}_{i=1}^M\) - we’ll try to formalize this later

Example: Polynomials

  • There is a natural “basis” for representing polynomials of degree \(i\) \(p(x) = \sum_{i=0}^m \alpha_i x^i\)

    • The monomials \(\set{x^i}_{i=1}^m\) can be combined to describe any polynomial of degree less than or equal to \(m\)
    • The degree \(m\) controls the “richness” or “complexity” the functions we can describe
  • Question: which functions can be described as such?

    • Analytic functions on open set \(\calD\): \(f(x)=\sum_{i=0}^\infty \alpha_i (x-x_0)^i\) for every \(x\in\calD\).
      \[ e^x = \sum_{i=0}^\infty \frac{1}{i!}x^i\quad \log(1+x)=\sum_{i=0}^\infty\frac{(-1)^{i+1}}{k}x^k\quad \sin x = \sum_{i=0}^\infty \frac{(-1)^i}{(2i+1)!}x^{2i+1} \]

    • Taylor series

      Let \(k\geq 1\) and let \(f:\bbR\to\bbR\) be in \(k\) times differentiable at a point \(a\in\bbR\). There exists \(h_k:\bbR\to\bbR\) such that \(\lim_{x\to a}h_k(x)=0\) and \[ f(x) = \sum_{i=0}^k \frac{f^{(i)}(a)}{i!}(x-a)^i + h_k(x)(x-a)^k. \]

Example: Lagrange Polynomials

  • Question: How do we find a basis expansion given \(\set{(x_i,y_i)}_{i=1}^n\)?

  • Lagrange polynomials \[ p(x) = \sum_{j=1}^{n} \alpha_j L_j(x)\qquad L_j(x)\eqdef \prod_{1\leq i\leq n, i\neq j}\frac{x-x_i}{x_j-x_i} \]

    Given \(n\geq 1\) distinct points \(\set{(x_i,y_i)}_{i=1}^n\), there exists a unique degree \(n-1\) interpolating polynomial.

Example: Polynomial splines

Given \(n\geq 1\) distinct points \(\set{(x_i,y_i)}_{i=1}^n\) a polynomial spline \(p\) of order \(\ell\) is such that - \(p(x_i)=y_i\) for \(i\in\intseq{1}{n}\) - \(p\) is an \(\ell\)th order polynomial between consecutive points \(x_i\) and \(x_{i+1}\) - \(p(x)\) has \(\ell-1\) continuous derivatives at the points \(\set{x_i}_{i=1}^n\)
  • B-splines: the splines can be viewed as linear basis expansion on a basis called B-splines
    • What are the B-splines for \(\ell=0\)?
    • What are the B-splines for \(\ell=1\)?
    • What are the B-splines for \(\ell=2\)?
  • Moving forward, we will need linear algebra to describe this precisely and systematically
    • How do we compute a linear basis expansion?
    • What is a good basis for machine learning?
    • How do we measure the quality of approximation?
